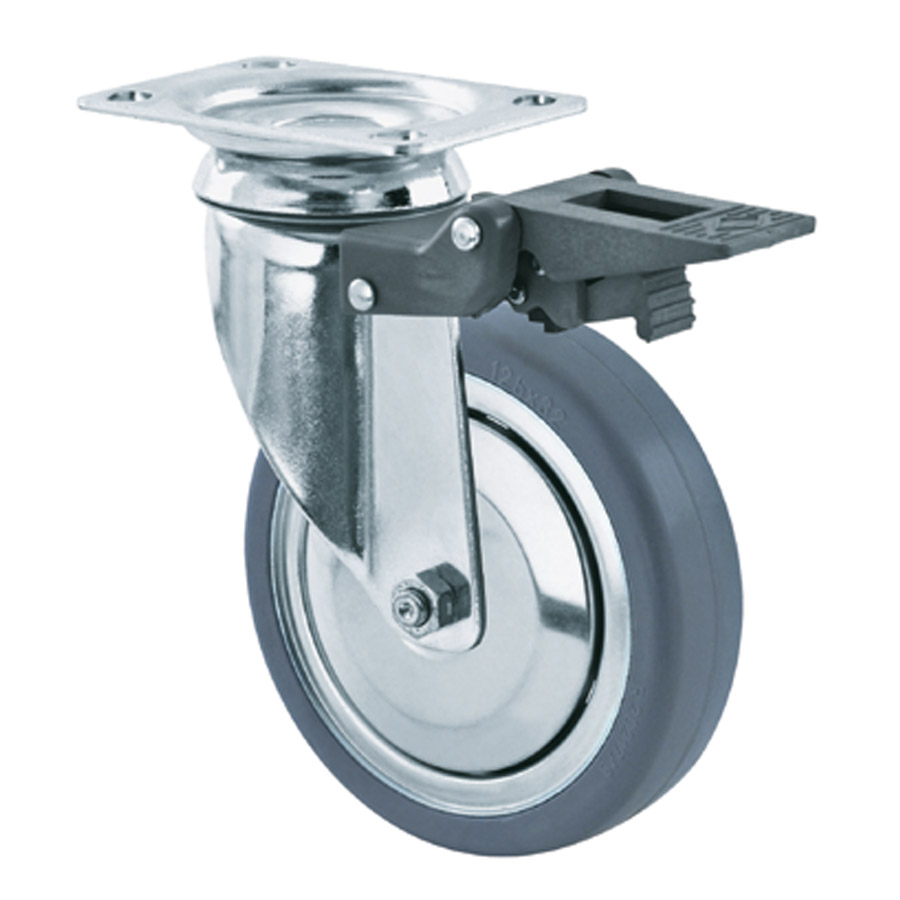

Swivel castor with total brake mounted behind, 80 mm - 200 mm, 80 kg - 110 kg
Part number: G42TZ-GF7B080
(367h 32C080b ZPF)
On request
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 117 mm |
| Offset | 43,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 80 kg |
| Weight | 961 g |
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
Variants
| Diameter | Tread width | Height | Offset | Top plate dimensions | Top plate hole diameter | Dist. between holes | Load capacity | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 367h 32C080b ZPF | 80 mm | 30 mm | 117 mm | 43,5 mm | 95x70 mm | 9 mm | 75x45/72x52 mm | 80 kg | 961 g |
| 367h 32C100b ZPF | 100 mm | 32 mm | 138 mm | 41,5 mm | 95x70 mm | 9 mm | 75x45/72x52 mm | 80 kg | 1090 g |
| 367h 32C125b ZPF | 125 mm | 32 mm | 162,5 mm | 43,5 mm | 95x70 mm | 9 mm | 75x45/72x52 mm | 100 kg | 1241 g |
| 367h 32C150b ZPF | 150 mm | 32 mm | 189 mm | 51 mm | 95x70 mm | 9 mm | 75x45/72x52 mm | 110 kg | 1628 g |
| 367h 32C200b ZPF | 200 mm | 32 mm | 241 mm | 61 mm | 95x70 mm | 9 mm | 75x45/72x52 mm | 110 kg | 0 g |
