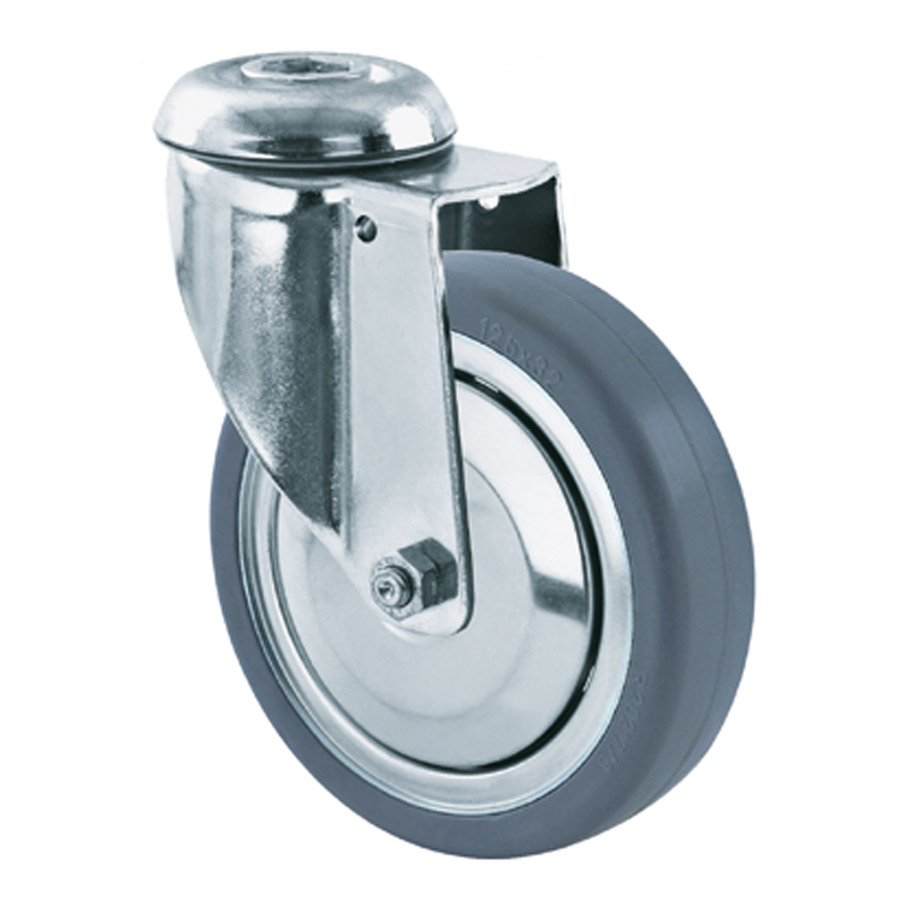

Swivel castor, 80 mm - 200 mm, 80 kg - 120 kg
Part number: G41AZ-GF7B080
(367a 32C080b ZLD)
On request
Technical data
| Diameter | 80 mm |
| Tread width | 30 mm |
| Height | 110 mm |
| Offset | 43,5 mm |
| Bolt hole diameter | 12,2 mm |
| Load capacity | 80 kg |
| Weight | 736 g |
Technical description
- sheet steel metal housing
- zinc passivated
- swivel bearing with double ball race
- protected from dust and water spray with plastic seal
- also available with plate PD (77x67 mm)
- also available with bolt hole LC (10,2 mm)
- on inquiry also available with fixing pin Z622 (28x45 mm)
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Areas of application
- brochure display stands
- care beds
- cleaning equipment
- computer area
- display stands
- dustbins
- file carts
- food transport equipment
- housekeeping carts
- industrial kitchens
- laundry carts
- medical equipment
- newspaper dispensers
- occasional carts
- restaurant areas
- sales stands
- shop fittings
- sport equipment
- tripods
Variants
| Diameter | Tread width | Height | Offset | Bolt hole diameter | Load capacity | Weight | |
|---|---|---|---|---|---|---|---|
| 367a 32C080b ZLD | 80 mm | 30 mm | 110 mm | 43,5 mm | 12,2 mm | 80 kg | 736 g |
| 367a 32C100b ZLD | 100 mm | 30 mm | 131 mm | 41,5 mm | 12,2 mm | 80 kg | 853 g |
| 367a 32C125b ZLD | 125 mm | 32 mm | 155,5 mm | 43,5 mm | 12,2 mm | 100 kg | 1026 g |
| 367a 32C150b ZLD | 150 mm | 32 mm | 182 mm | 51 mm | 12,2 mm | 110 kg | 1391 g |
| 367a 32C200b ZLD | 200 mm | 32 mm | 234 mm | 61 mm | 12,2 mm | 120 kg | 2106 g |
