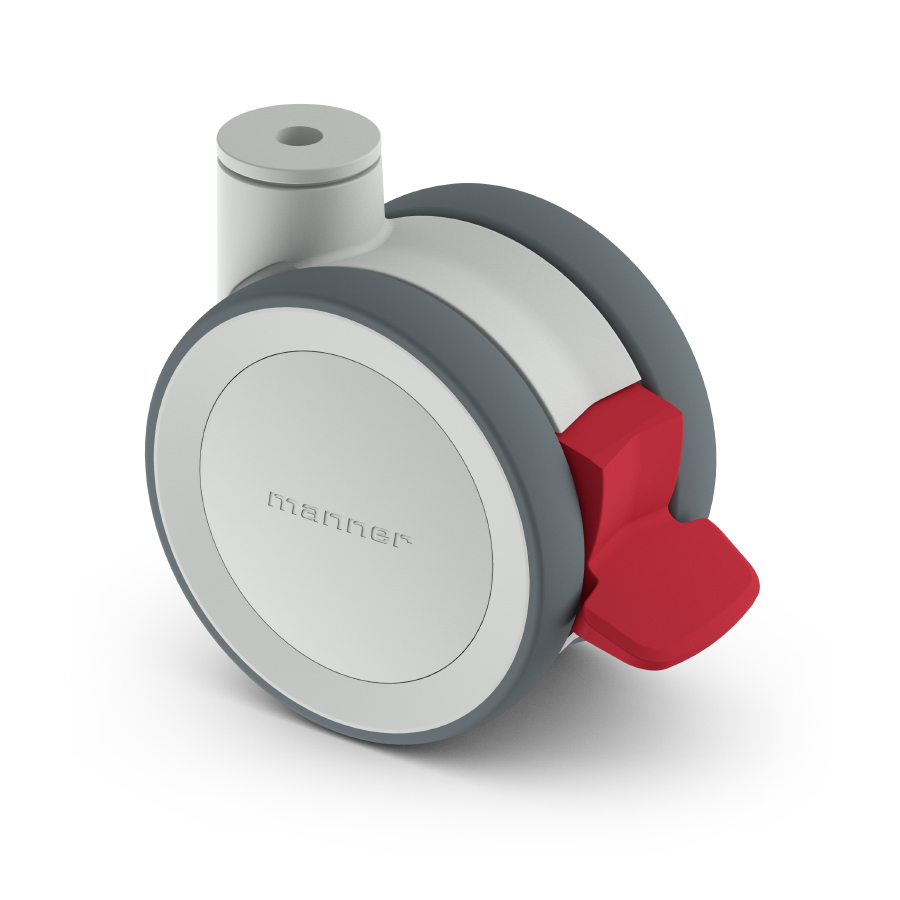

Swivel castor with wheel locking brake, 75 mm - 125 mm, 95 kg - 125 kg
Part number: 305295
(TWIST)
Technical data
| Diameter | 75 mm |
| Tread width | 2x15 (71) mm |
| Height | 80 mm |
| Bolt hole diameter | 10 mm |
| Brake swivel radius | 85 mm |
| Load capacity | 95 kg |
Technical description
- TWIST plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- Fittings: 10 und 12 mm bolt hole and top plate
- on request also available with other wheel variants and lower overall height
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Areas of application
- Laundry carts
- bedside cabinets
- catering trolleys
- diagnostic equipment
- electronic equipment
- food transport equipment
- transport trolleys
Variants
|
Diameter |
Tread width |
Height |
Bolt hole diameter |
Brake swivel radius |
Load capacity |
|
75 mm |
2x15 (71) mm |
80 mm |
10 mm |
85 mm |
95 kg |
|
100 mm |
2x20 (81) mm |
118 mm |
10 mm |
113 mm |
125 kg |
|
125 mm |
2x20 (81) mm |
143 mm |
10 mm |
133 mm |
125 kg |
