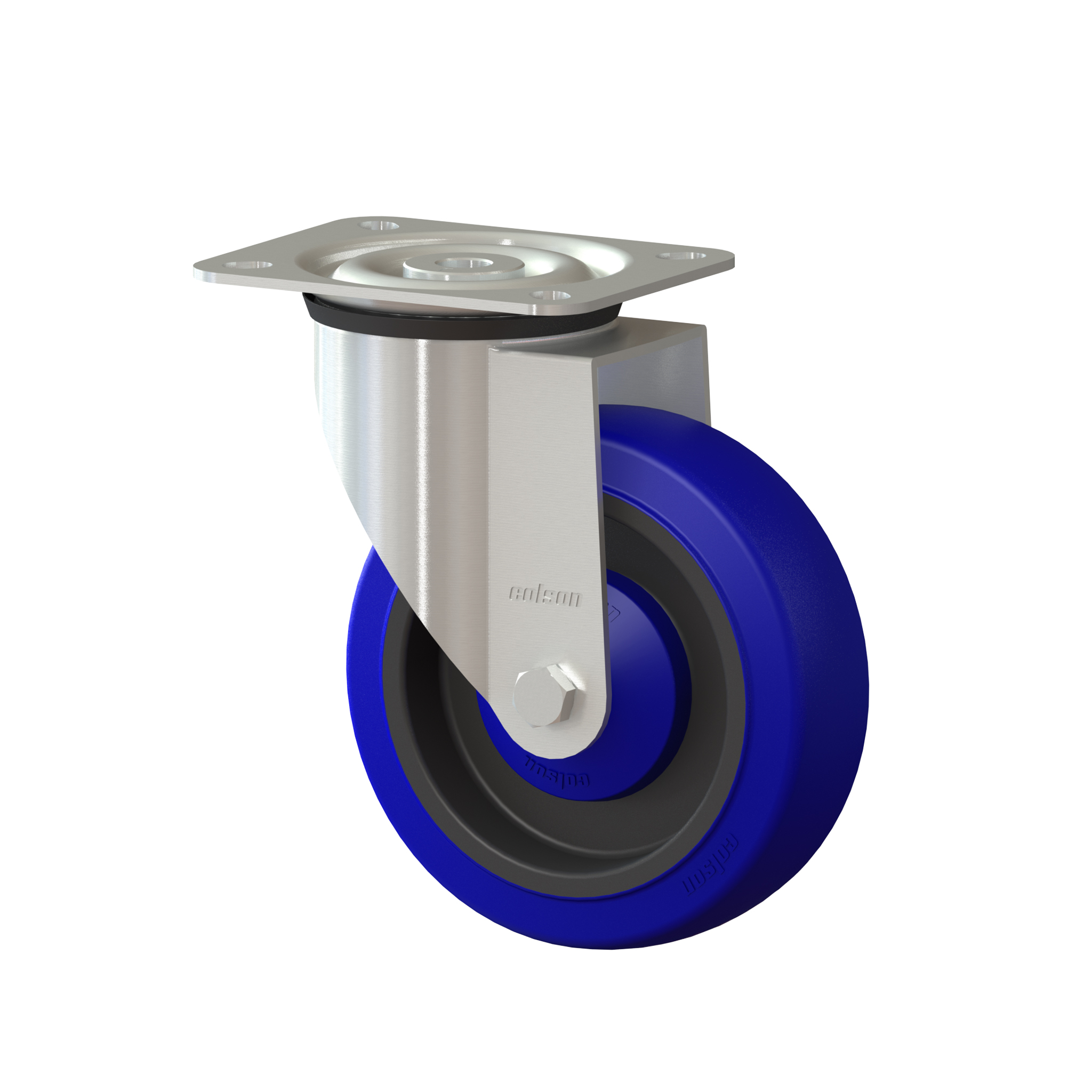

Swivel castor, 80 mm - 125 mm, 120 kg - 180 kg
Part number: I62AZ-PL1K080-C01
(Veloris)
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Height | 105 mm |
| Offset | 34 mm |
| Top plate dimensions | 104x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 120 kg |
Wheel
- dark grey polypropylene hub
- PERFORMA® tread made of
- thermoplastic elastomer in blue color with a hardness of 65 ± 5 Shore A
- single
- ball bearing
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Load capacity |
| I62AZ-PL1K080-C01 |
80 mm |
32 mm |
105 mm |
34 mm |
104x85 mm |
9 mm |
80x60 mm |
120 kg |
| I62AZ-PL1K100-C01 |
100 mm |
32 mm |
128 mm |
34 mm |
104x85 mm |
9 mm |
80x60 mm |
150 kg |
| I62AZ-PL1K125-C01 |
125 mm |
40 mm |
156 mm |
38 mm |
104x85 mm |
9 mm |
80x60 mm |
180 kg |
