Medical Equipment Castors
Sometimes it’s a matter of seconds – the right medication, the appropriate team, and the necessary luck. Fine, at times like this you need the reassurance that the castors from Colson are dependable. We deliver our promises: quiet operation, load-bearing capacity, safety and long product life.
399a 38K150v KPF-FK (NIMBUS)
On request
399a 38K150v KPF-FK 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 201 mm |
| Offset | 42 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 75x45/72x52 mm |
| Load capacity | 80 kg |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover white RAL 9016
- unique design and patented technology
- precision ball bearings in the fork head
Areas of application
- medical equipment
- furniture
399q 38K150v K2351 (NIMBUS)
On request
399q 38K150v K2351 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 80 kg |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover, optionally in white or metallic
- unique design and patented technology
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables

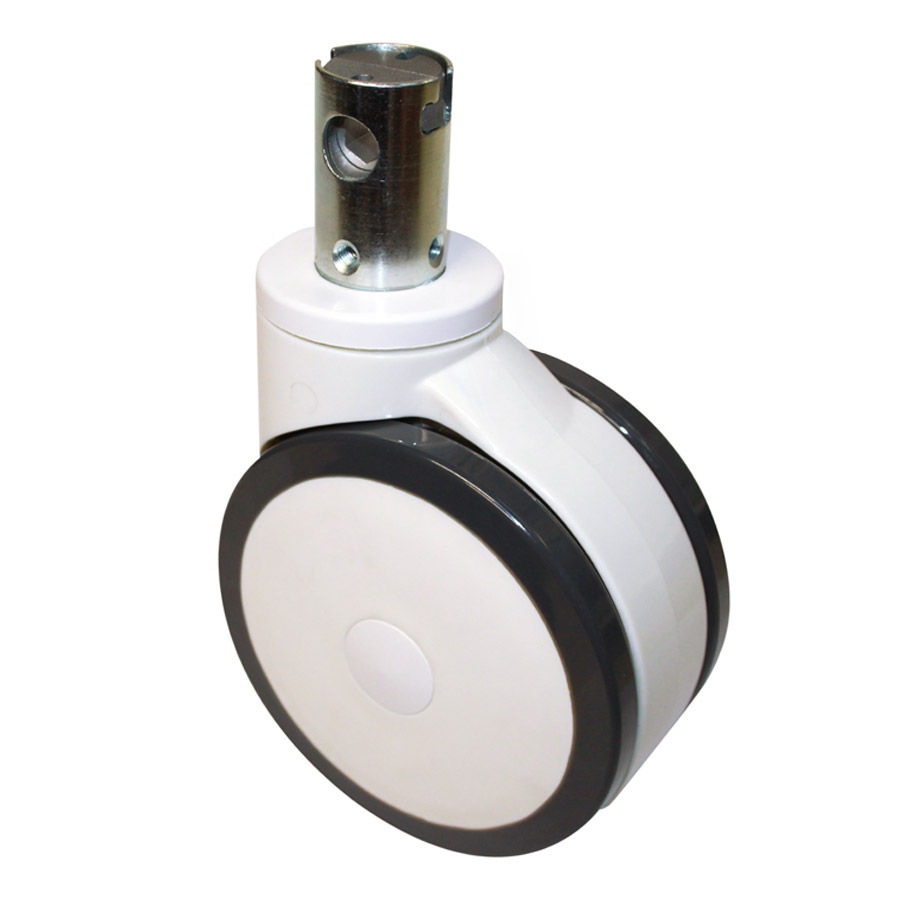

399q 38K150v K985 (NIMBUS)
On request
399q 38K150v K985 150 mm, 80 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Load capacity | 80 kg |
| Weight | 1500 g |
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover, optionally in white or metallic
- unique design and patented technology
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
403a 29K100y K00-2
403a29K100yK00-1 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Tread width | 2x30 mm |
| Height | 123,5 mm |
| Offset | 30 mm |
| Stem size | 32 mm |
| Brake swivel radius | 95 mm |
| Load capacity | 250 kg |
Wheel
- TPU-wheels (Shore A 95)
- electrically conductive
Technical description
- Plunger lock castor series 403
- Plastic twin wheel castor
- Precision ball bearings in swivel section and wheel
Areas of application
- Medical equipment, for example OP-tables
CT572 R66a W51 7U (CT Serie/s)
125 mm - 150 mm, 150 kg - 200 kg
Technical data
| Diameter | 125 mm |
| Tread width | 78 mm |
| Wheel width | 2x15 mm |
| Height | 132 mm |
| Offset | 109 mm |
| Stem size | 32x50 mm |
| Load capacity | 150 kg |
Wheel
- Polyurethane tread (95 Sh A)
- Precision ball bearing
- Available also in conductive version
Technical description
- Pressed steel body with double bearing in swivel head (precision ball bearing and thrust ball bearing) for high load capacity
- Dust and splash-proof
- Integrated switching mechanism with central total lock
- Permanent grease filling in the switching mechanism
- Also available with other wheel variants and long stem 28x98 mm
Areas of application
- Intensive care beds
- Hospital beds
- Medical equipment
- Operating theatre beds
- Operating tables
- Nursing beds
DHL
DHR
DMF-21C-L10 (Serie/s DM)
50 mm, 60 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x18 mm |
| Hub length | 44 mm |
| Height | 72 mm |
| Offset | 30 mm |
| Bolt hole diameter | 10 mm |
| Brake swivel radius | 87 mm |
| Load capacity | 60 kg |
Wheel
- double wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
DMF-21C-P60 (Serie/s DM)
50 mm, 60 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x18 mm |
| Hub length | 44 mm |
| Height | 72 mm |
| Offset | 30 mm |
| Top plate dimensions | 60x60 mm |
| Top plate hole diameter | 6,2 mm |
| Dist. between holes | 38x38-48x48 mm |
| Load capacity | 60 kg |
Wheel
- double wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
DML-21C-L10 (Serie/s DM)
50 mm, 60 kg
Technical data
| Diameter | 50 mm |
| Tread width | 2x18 mm |
| Hub length | 44 mm |
| Height | 72 mm |
| Offset | 30 mm |
| Bolt hole diameter | 10 mm |
| Brake swivel radius | 55 mm |
| Load capacity | 60 kg |
Wheel
- double wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
