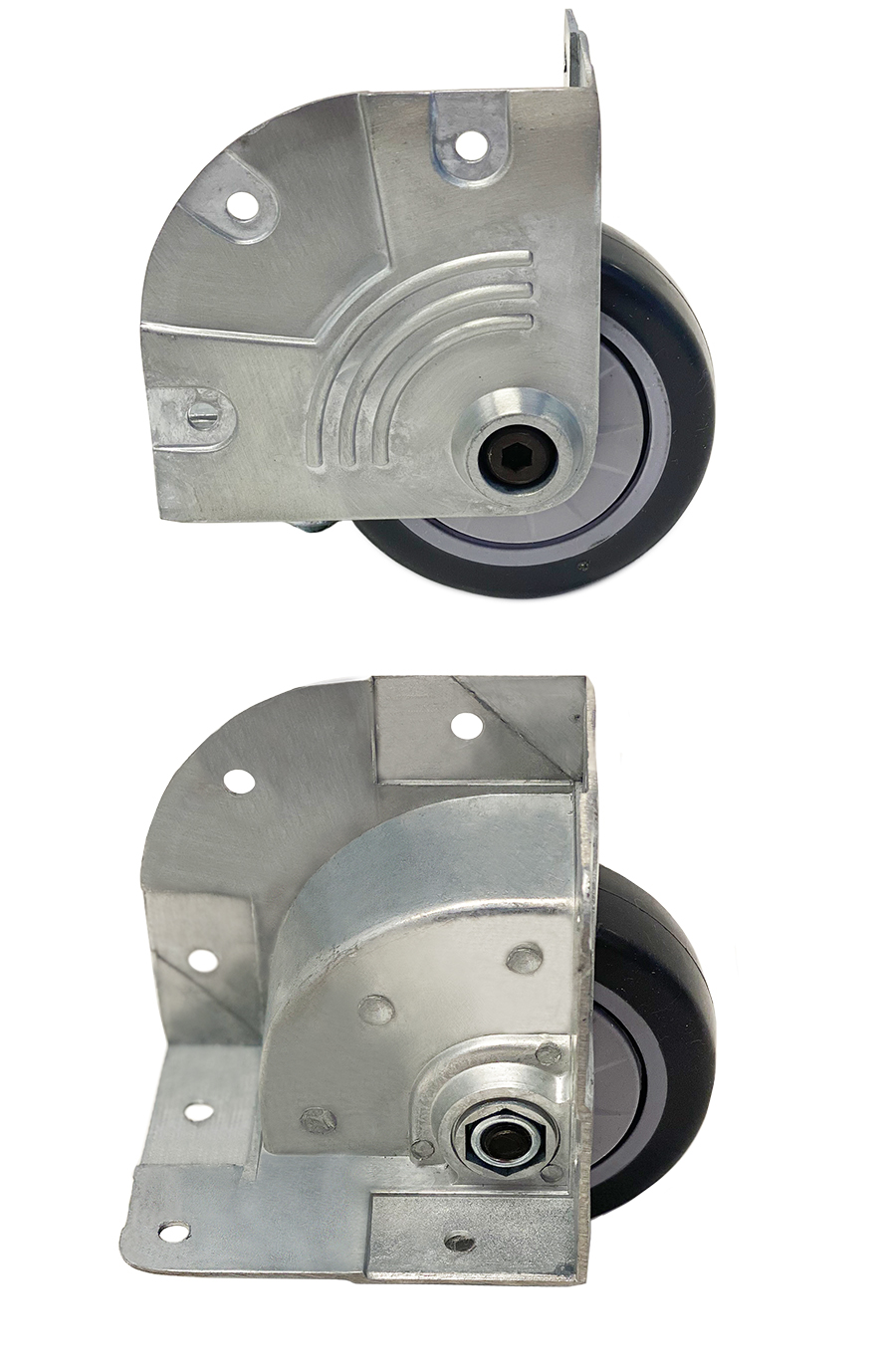

118a 820 799
75 mm, 50 kg
Technical data
| Diameter | 75 mm |
| Tread width | 25 mm |
| Height | 104,4 mm |
| Top plate dimensions | 81,4 x 65,3 mm |
| Top plate hole diameter | 5,2 mm |
| Dist. between holes | 34 x 50 + 40,71 x 40,71 mm |
| Load capacity | 50 kg |
| Weight | 430 g |
Wheel
- TPR wheel (Shore A 80)
Technical description
- case corner castor with die cast aluminium body.

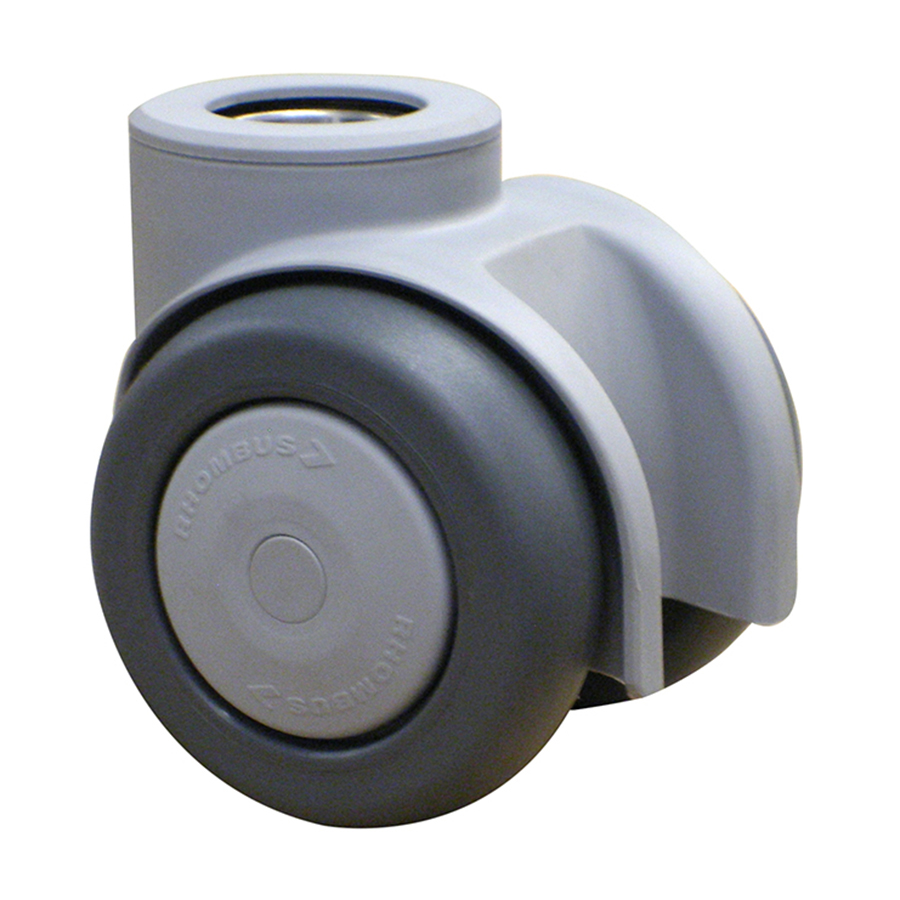

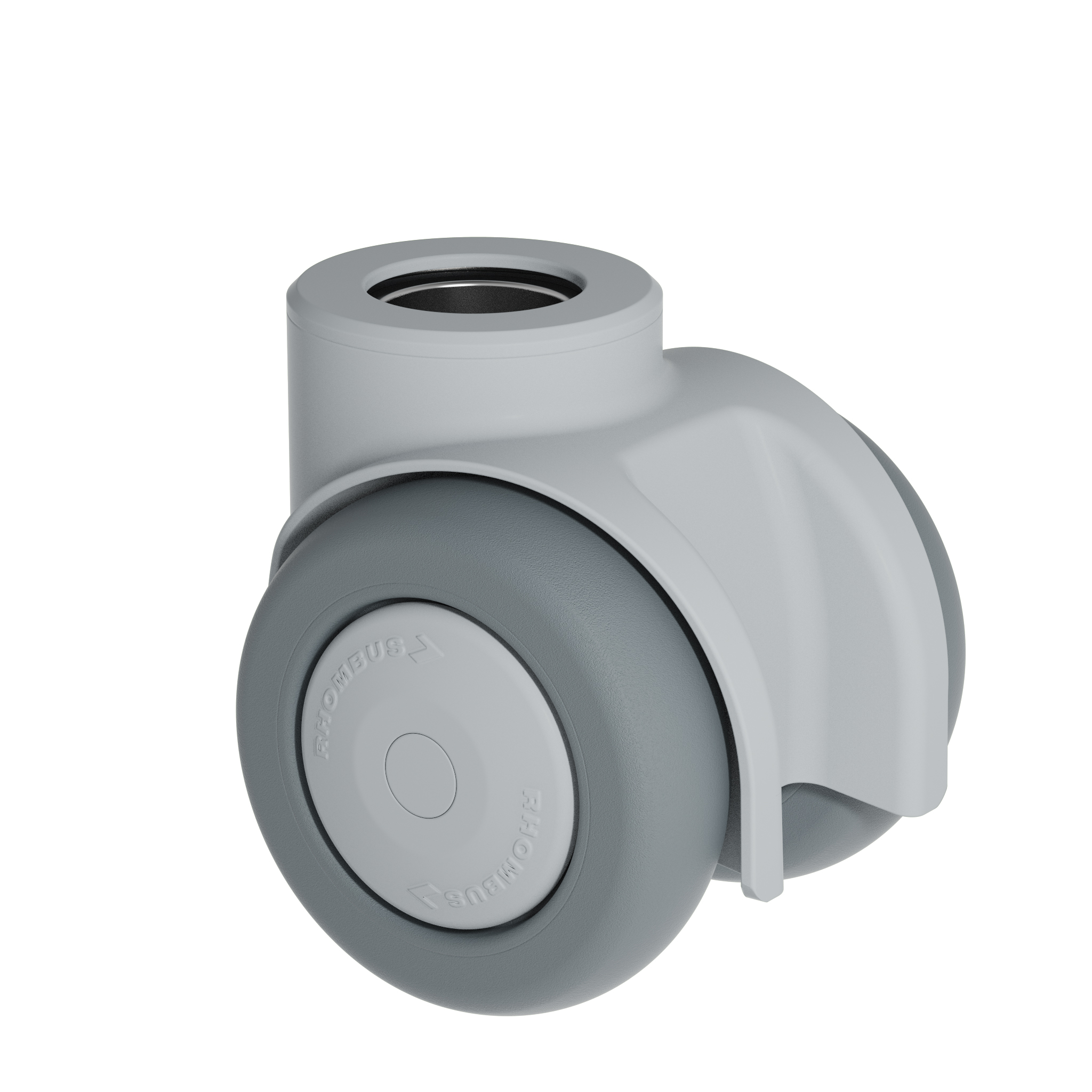

403a 29K100y K00-2
403a29K100yK00-1 100 mm - 125 mm, 250 kg
Technical data
| Diameter | 100 mm |
| Tread width | 2x30 mm |
| Height | 123,5 mm |
| Offset | 30 mm |
| Stem size | 32 mm |
| Brake swivel radius | 95 mm |
| Load capacity | 250 kg |
Wheel
- TPU-wheels (Shore A 95)
- electrically conductive
Technical description
- Plunger lock castor series 403
- Plastic twin wheel castor
- Precision ball bearings in swivel section and wheel
Areas of application
- Medical equipment, for example OP-tables

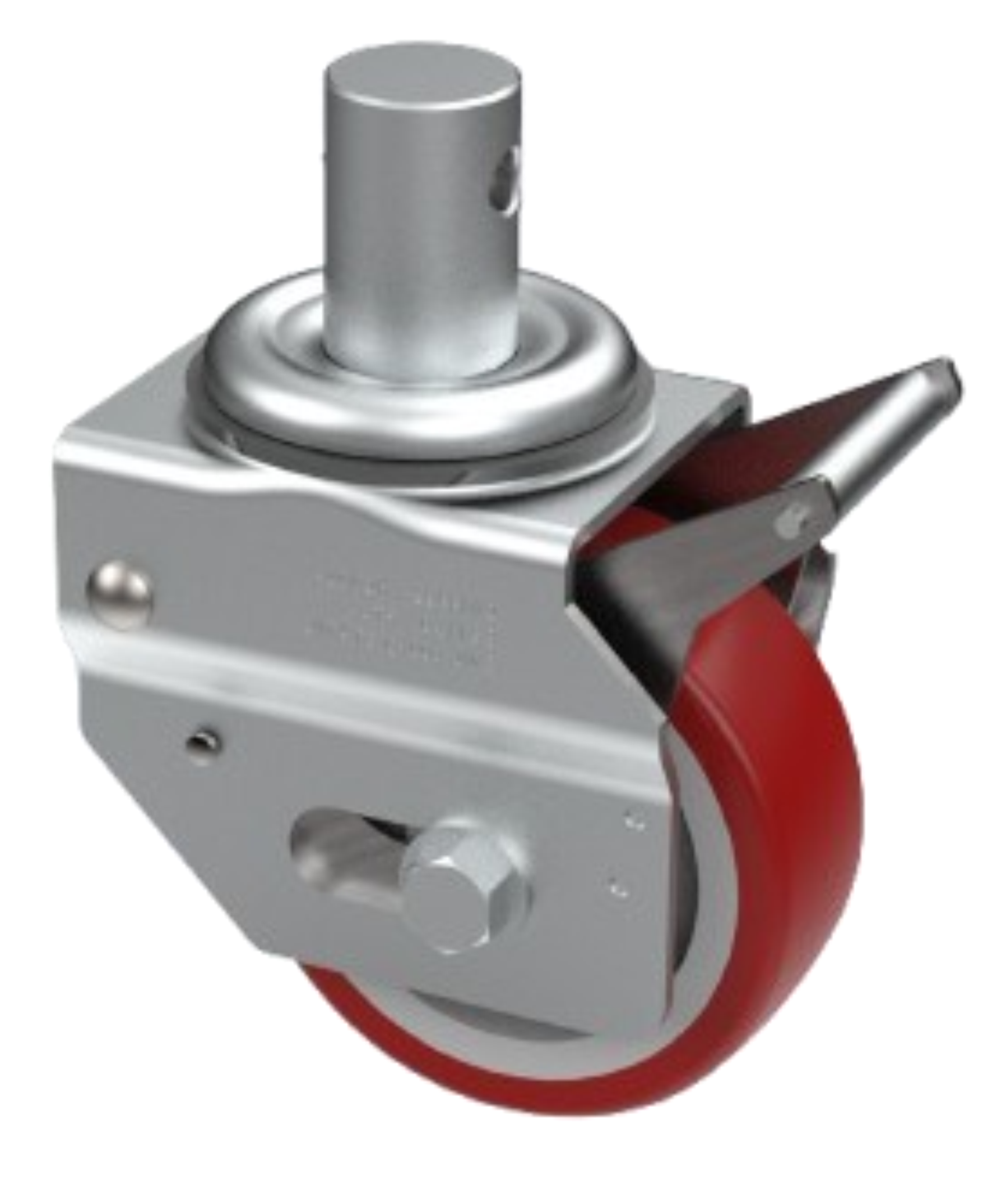

SJE 125 NTOE B21 BX4
125 mm - 200 mm, 600 kg - 820 kg
Technical data
| Diameter | 125 mm |
| Tread width | 45 mm |
| Height | 160 mm |
| Offset | 30 mm |
| Stem size | 38x52 mm |
| Brake swivel radius | 165 mm |
| Load capacity | 600 kg |
Wheel
- white nylon hub, polyurethane TPU wheel tread in red color with a hardness of 95 ± 5 Shore A
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold

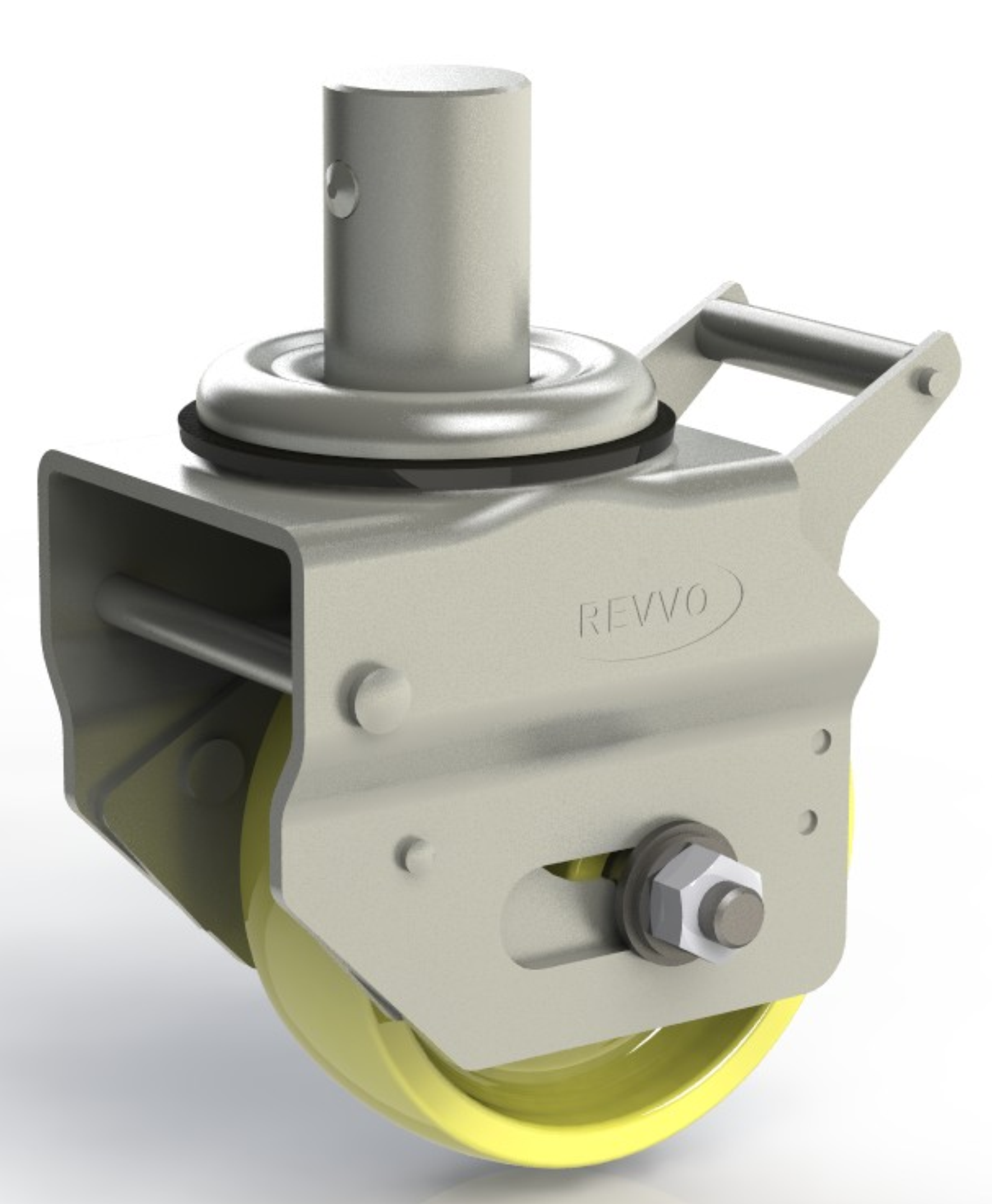

SJE 125 NYOY B21 BX4 - 0640-0193
125 mm - 200 mm, 500 kg - 820 kg
Technical data
| Diameter | 125 mm |
| Tread width | 40 mm |
| Height | 160 mm |
| Offset | 34 mm |
| Stem size | 38x52 mm |
| Brake swivel radius | 165 mm |
| Load capacity | 500 kg |
Wheel
- injection-molded PA6 nylon in BS 381C Bold Yellow No. 363 color with a hardness of 75 ± 5 Shore D
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold

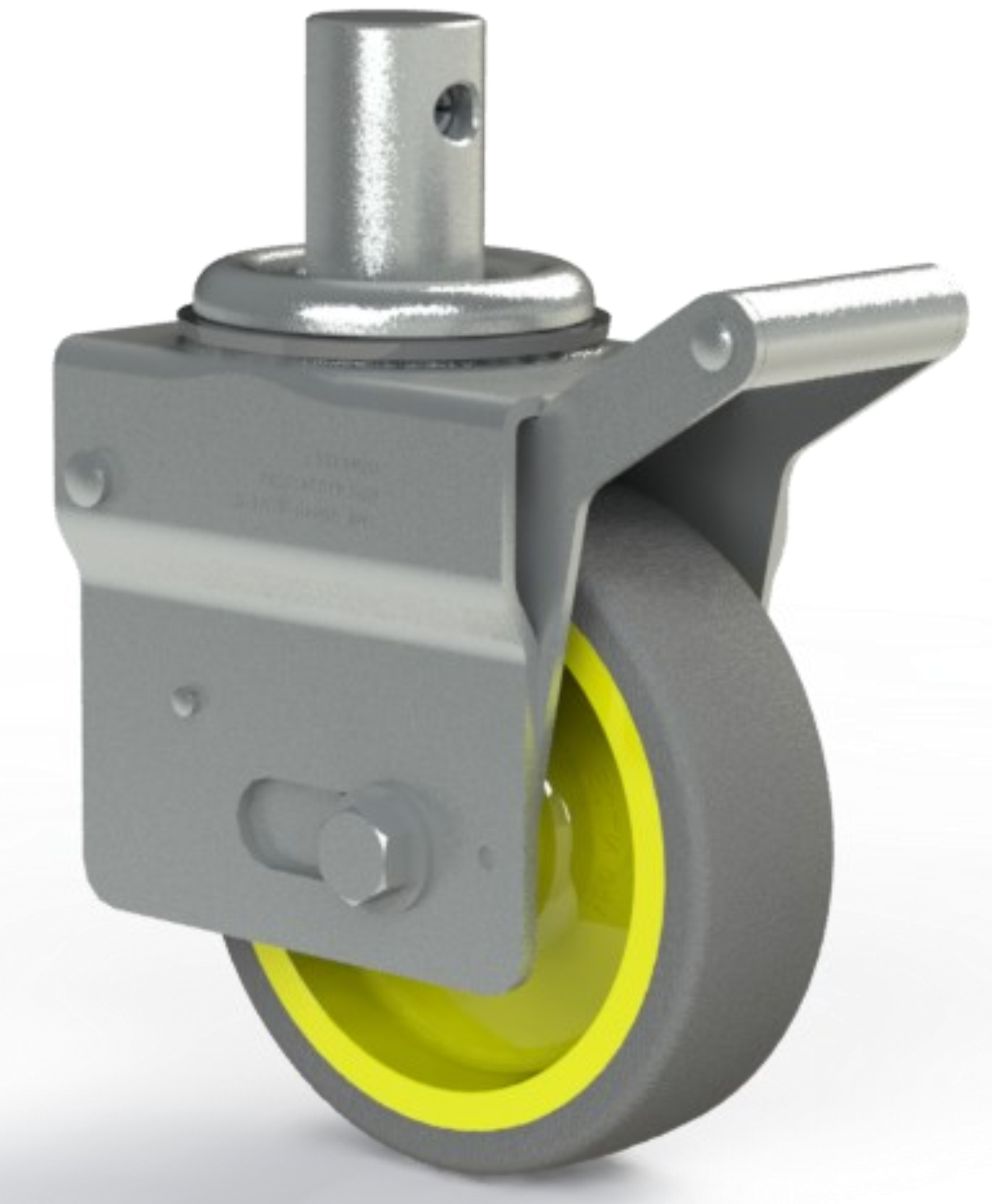

SJE 150 NTOB B21 BX4 - 0640-0162
150 mm - 200 mm, 820 kg
Technical data
| Diameter | 150 mm |
| Tread width | 45 mm |
| Height | 190 mm |
| Offset | 34 mm |
| Stem size | 38x52 mm |
| Brake swivel radius | 165 mm |
| Load capacity | 820 kg |
Wheel
- nylon hub in BS 381C Bold Yellow No. 363 color
- polyurethane TPU wheel tread in grey color with a hardness of 95 ± 5 Shore A
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold

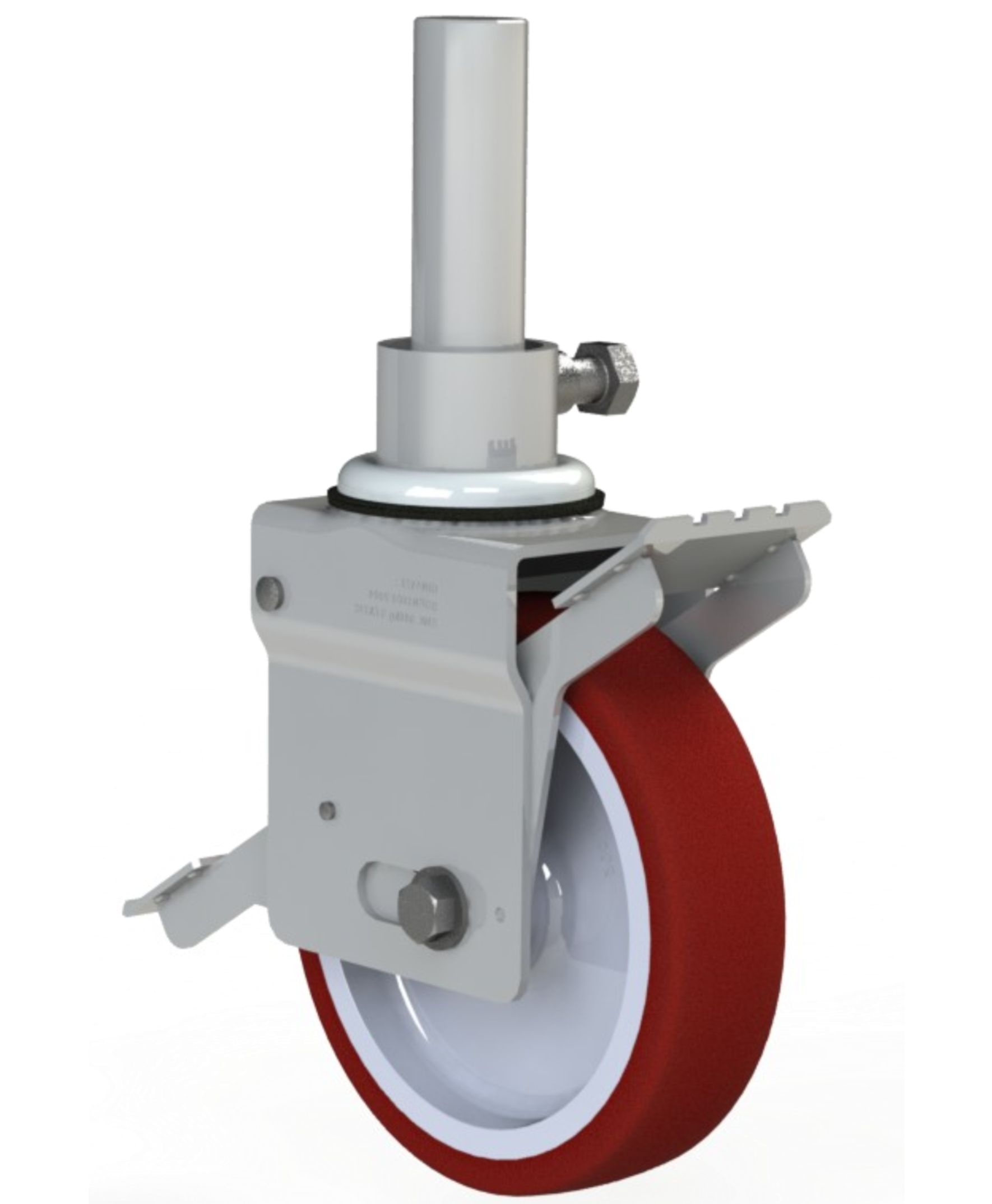

SJE 200 NTOE CS2 B - 0629-9027
200 mm, 820 kg
Technical data
| Diameter | 200 mm |
| Tread width | 50 mm |
| Height | 240 mm |
| Offset | 34 mm |
| Stem size | 38/50 mm |
| Brake swivel radius | 165 mm |
| Load capacity | 820 kg |
Wheel
- white nylon hub
- polyurethane TPU wheel tread in red color with a hardness of 95 ± 5 Shore A
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold

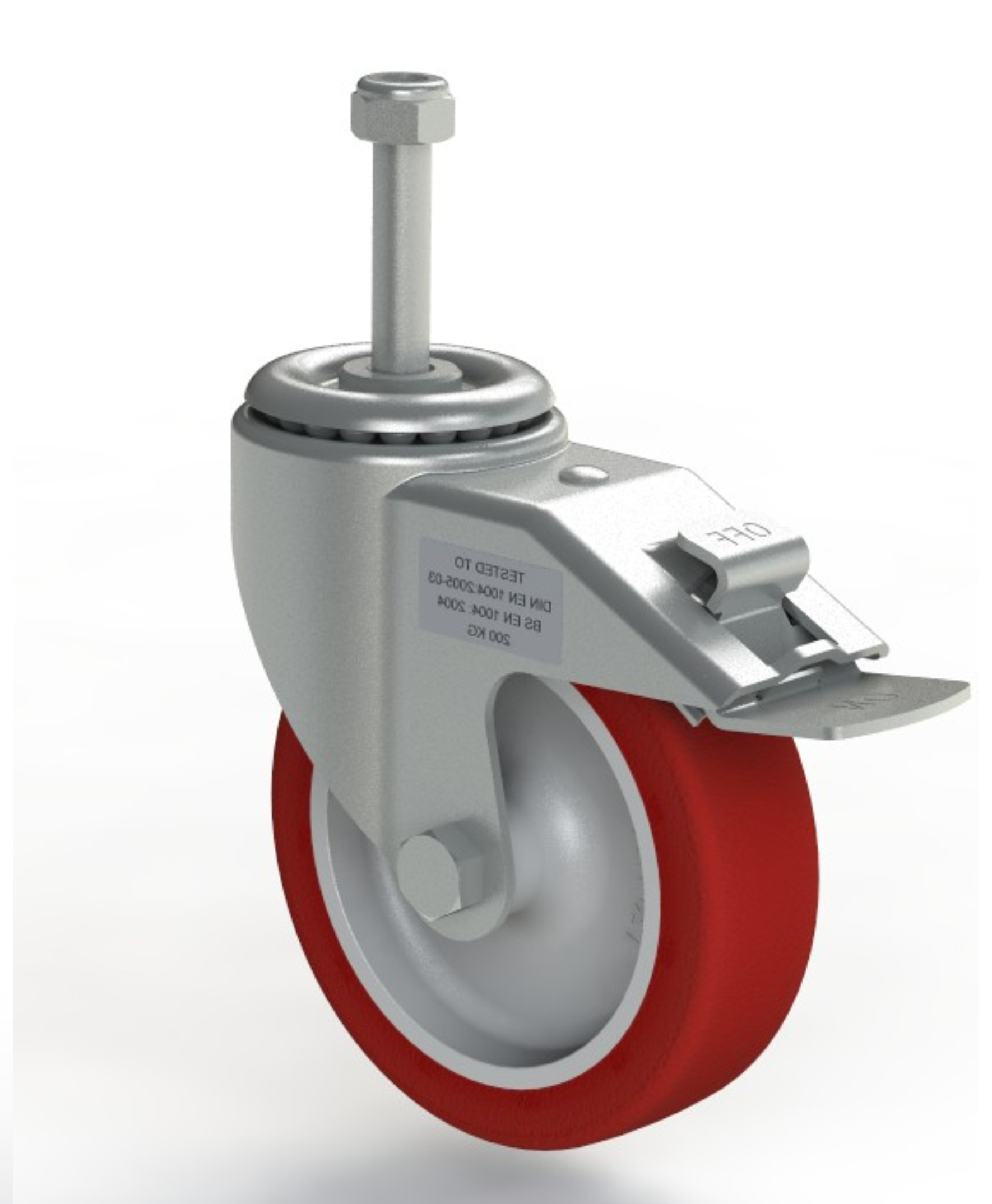

XSD 125 NT04 L3 - 0640-0393
125 mm, 200 kg
Technical data
| Diameter | 125 mm |
| Tread width | 35 mm |
| Height | 160 mm |
| Offset | 40 mm |
| Threaded stem size | M12 mm |
| Brake swivel radius | 144 mm |
| Load capacity | 200 kg |

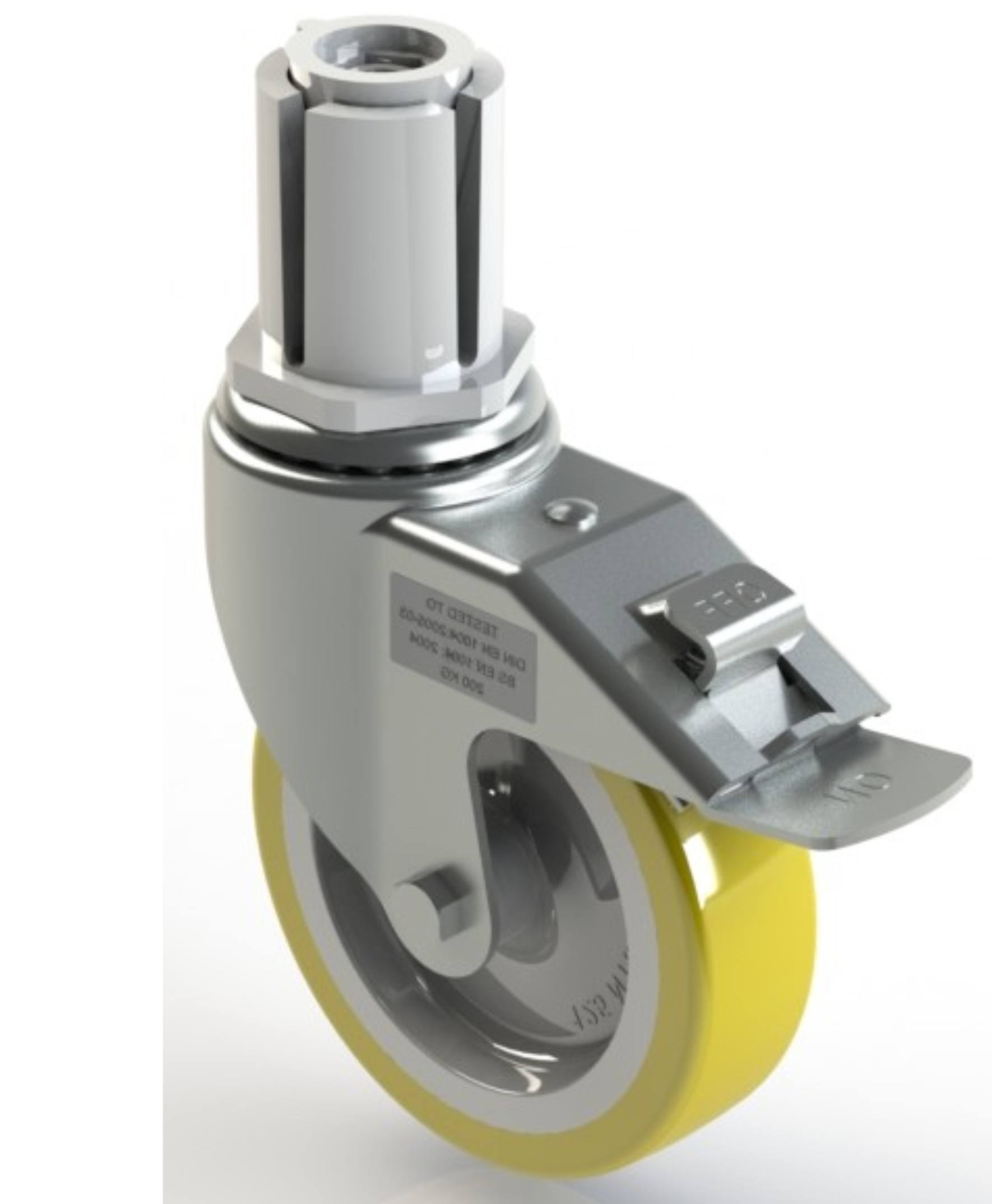

XSD 125 NYOC R22L - 0640-0327
125 mm, 200 kg
Technical data
| Diameter | 125 mm |
| Tread width | 35 mm |
| Height | 160 mm |
| Offset | 40 mm |
| Stem size | 47 mm |
| Brake swivel radius | 144 mm |
| Load capacity | 200 kg |
Wheel
- injection-molded PA6 nylon, white hub
- wheel tread in yellow color with
- a hardness of 75 ± 5 Shore A
- plain bearing
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Areas of application
- Scaffold

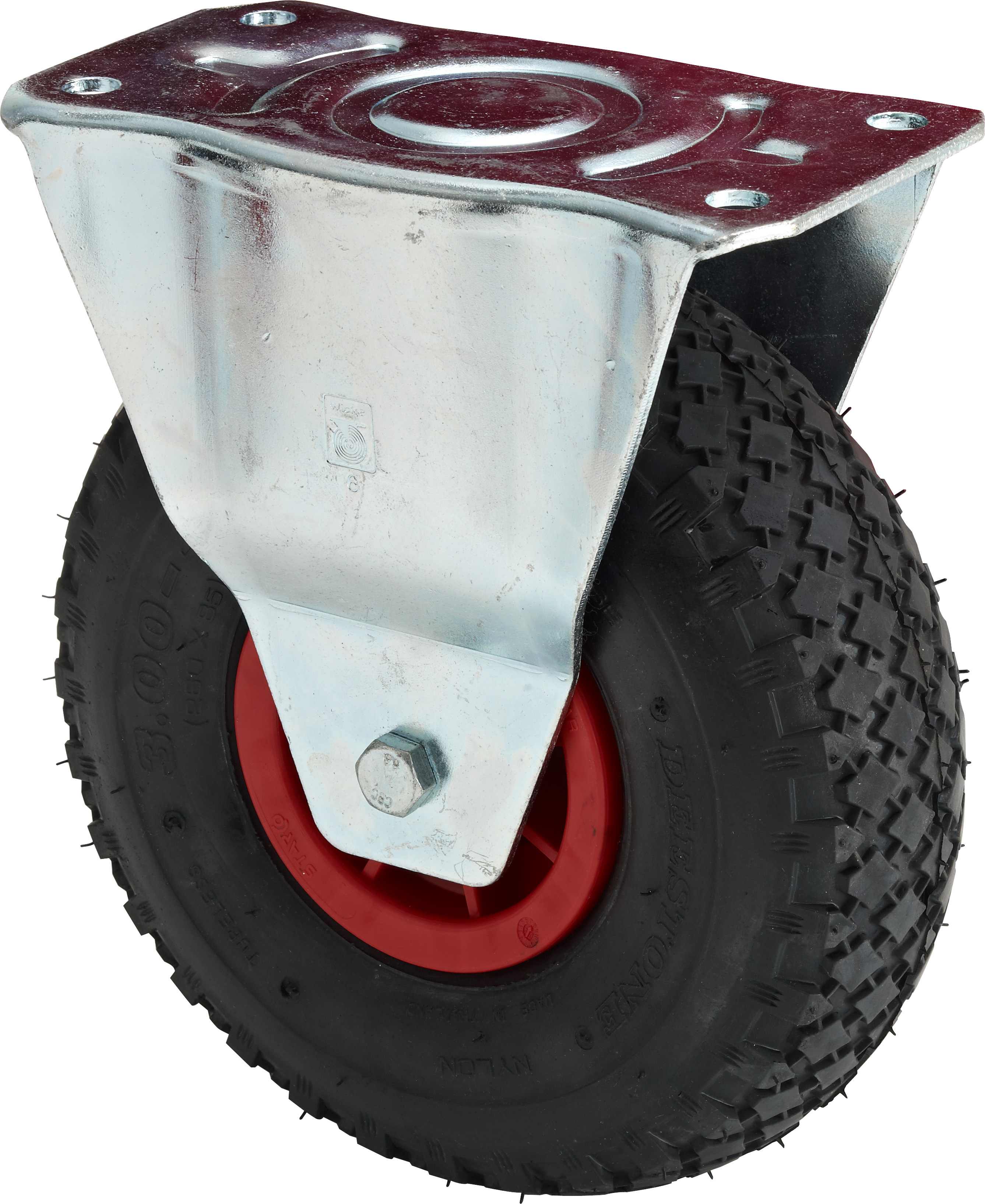

FLPL 3.00-4
FLPL 3.00-4 260 mm, 170 kg
Technical data
| Diameter | 260 mm |
| Wheel width | 85 mm |
| Hub length | 75 mm |
| Height | 307 mm |
| Top plate dimensions | 175 x 175 mm |
| Top plate hole diameter | 14.5 mm |
| Dist. between holes | 140 x 140 mm |
| Load capacity | 170 kg |
| Weight | 3.75 kg |
Wheel
- Pneumatic wheel with a red plastic core
- black tyre
JA8SUB
JA8SUB
Technical data
| Diameter | 200 mm |
| Wheel width | 51 mm |
| Height | 266/342 mm |
| Offset | 57 mm |
| Top plate dimensions | 152x106 mm |
| Top plate hole diameter | 12 mm |
| Dist. between holes | 114,3x63,5 mm |
| Load capacity | 1045 kg |
