Furniture Castors
Moveable small and large furniture ensures flexibility and creates room for change. With furniture castors from Colson , sofabeds, audio furniture, tables, cupboards and many other furnishings can be ideally positioned, but still remain mobile.
No matter what the floor requirements, Colson has the right solution on hand, and that is in classic Colson quality, with all the characteristics to be expected of a furniture castor.
00

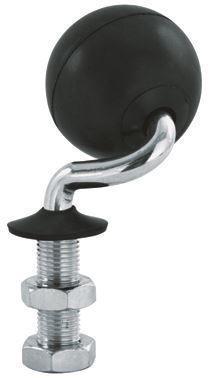

119 050 R (119 050 R)
On request
119 05050 mm, 50 kg
Technical data
| Diameter | 50 mm |
| Height | 110,3 mm |
| Load capacity | 50 kg |
| Weight | 207 g |
Technical description
- ball-swivel castor
- steel wire construction with black rubber spherical wheel (Shore A 70)
- threaded pin M 14x1,5x44 mm, 2 nuts, rubber sealing ring
- measurement top edge ball bearing upper nut 65 mm
Areas of application
- belt grinding machines
- glass cutting tables

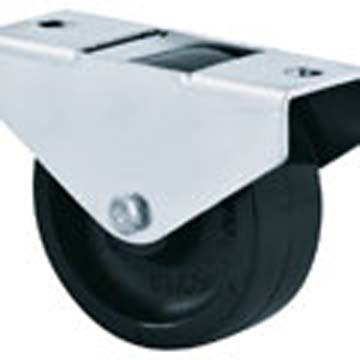

153a 00G030z ZPS
On request
153a 00G030z ZPS 30 mm, 15 kg
Technical data
| Diameter | 30 mm |
| Tread width | 15 mm |
| Height | 33,5 mm |
| Top plate dimensions | 45x20 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 35,5 mm |
| Load capacity | 15 kg |
| Weight | 32 g |
Wheel
- polypropylene black
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds

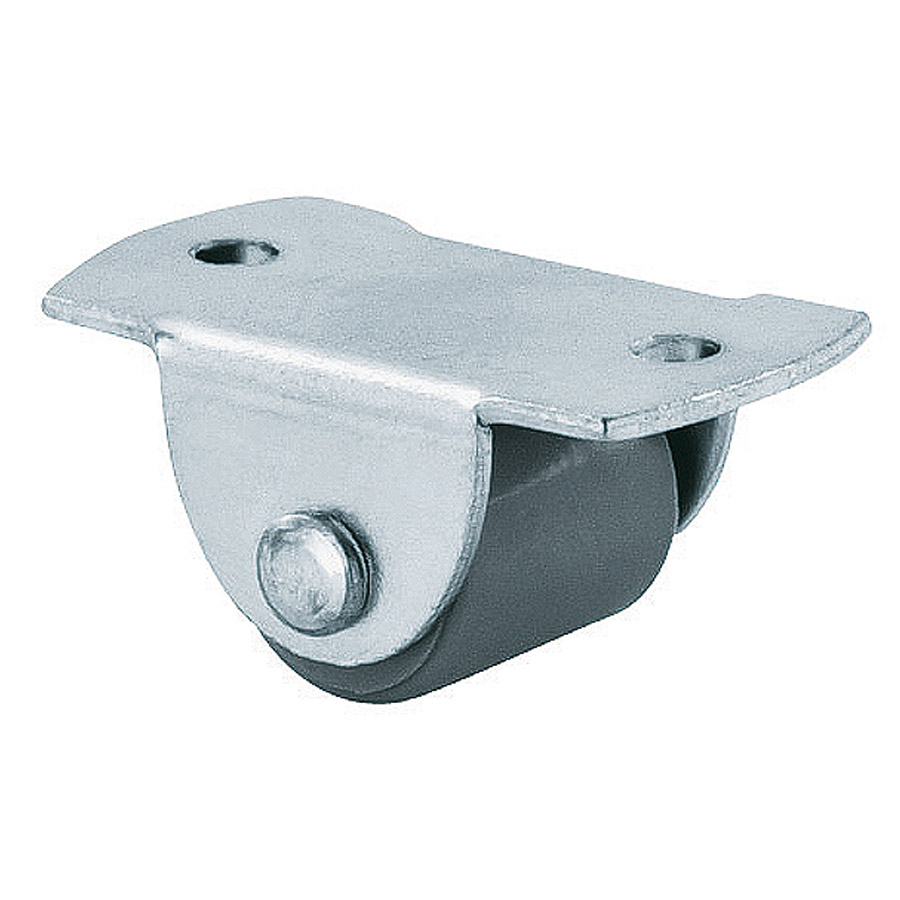

156a 00G016g ZPS
On request
156a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 19,5 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 28,5 mm |
| Load capacity | 20 kg |
| Weight | 22 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds

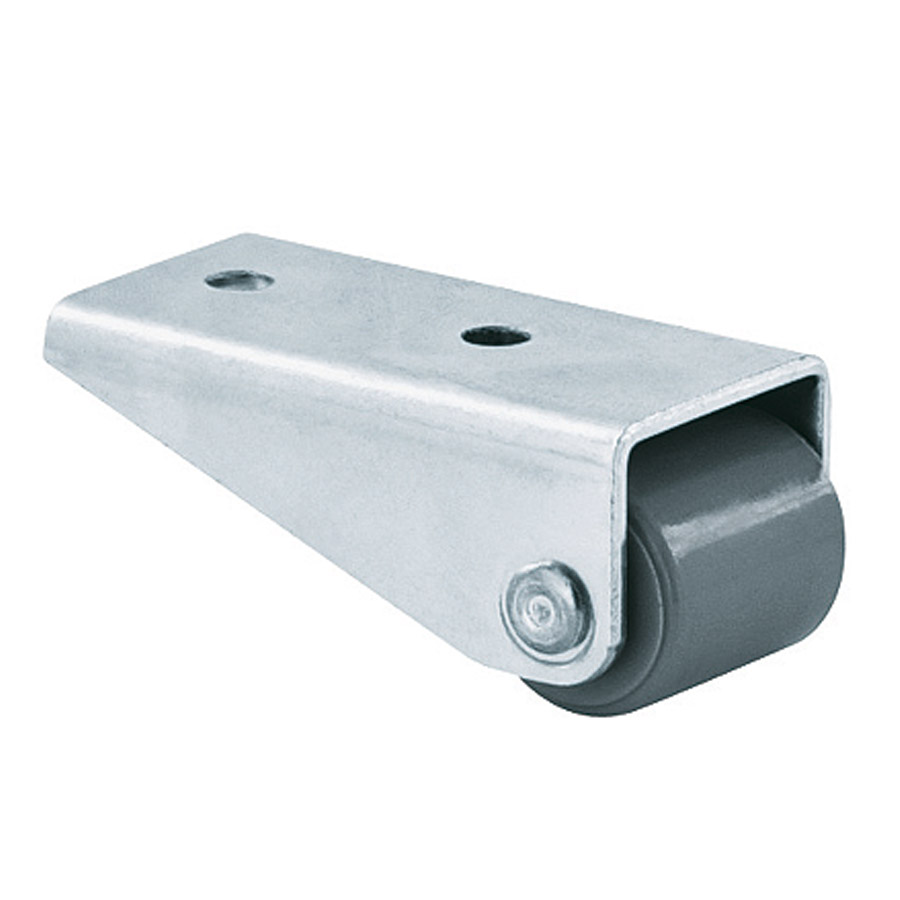

164a 00G016g ZPS
On request
164a 00G016g ZPS 16 mm, 20 kg
Technical data
| Diameter | 16 mm |
| Tread width | 19 mm |
| Height | 20 mm |
| Top plate dimensions | 42x23 mm |
| Top plate hole diameter | 4,3 mm |
| Dist. between holes | 20 mm |
| Load capacity | 20 kg |
| Weight | 30 g |
Wheel
- polyamide grey
- plain bearing
Technical description
- sheet steel housing
- zinc passivated
Areas of application
- drawers
- small furniture
- sofa beds

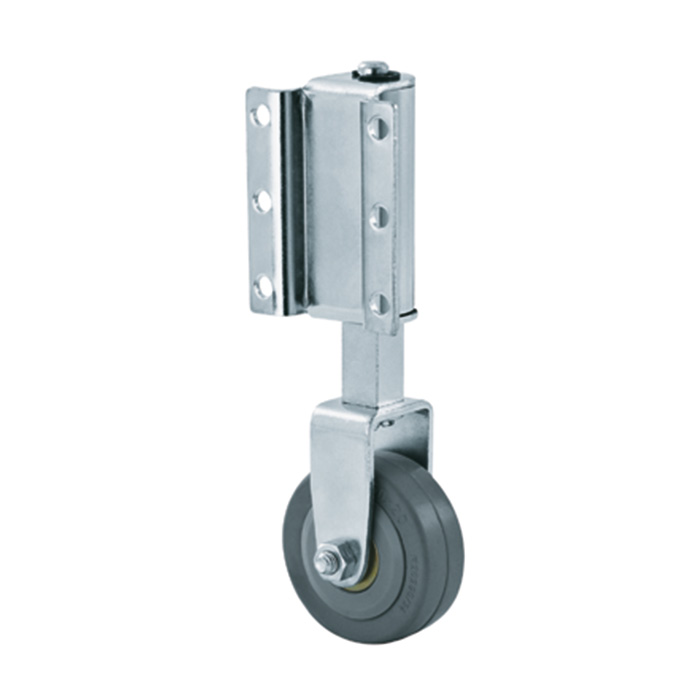

176a 33C050b ZPS
176a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 286 g |
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders

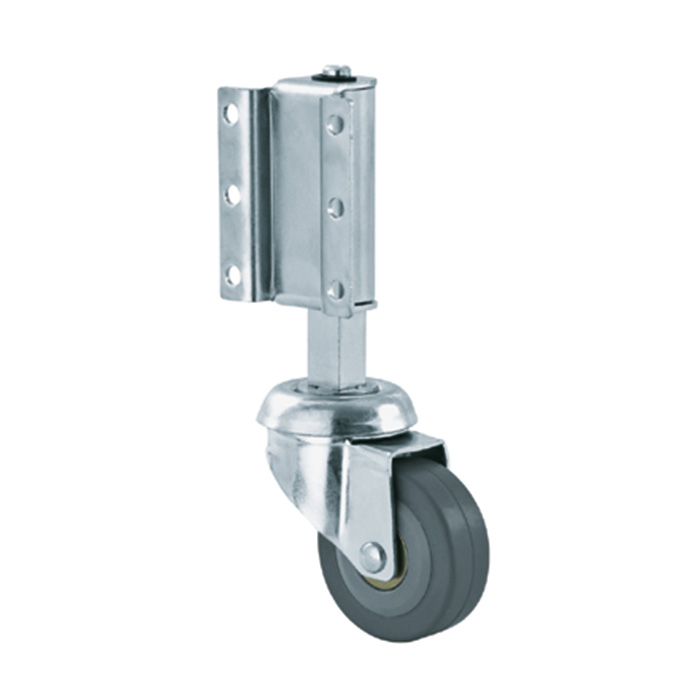

177a 33C050b ZPS
177a 33C050b ZPS 50 mm, 40 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Height | 155 mm |
| Offset | 24 mm |
| Top plate dimensions | 60x50 mm |
| Top plate hole diameter | 5,5 mm |
| Dist. between holes | 22,5x38,8 mm |
| Load capacity | 40 kg |
| Weight | 374 g |
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- plastic wheel centre grey
- metal thread guard zinc-passivated (from Ø 75 mm)
- flange bearing
- Attention: wheel in Ø 50 mm riveted!
Technical description
- metal housing
- zinc passivated
- with load related locking effect
- screw-on plate can be removed
- turned through 90°
- total spring distance max. 22 mm,
- total spring pressure 17 kg
Areas of application
- ladders

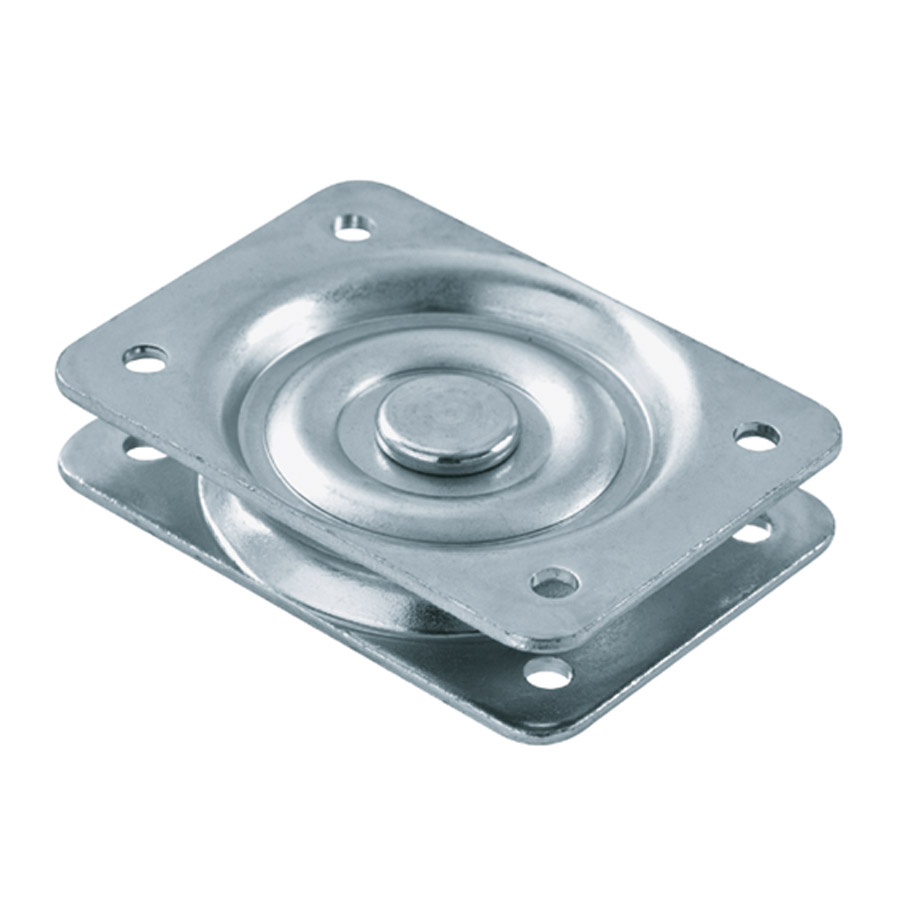

197B
On request
197B 0 mm, 280 kg
Technical data
| Height | 19,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 6,5 mm |
| Dist. between holes | 75x45 mm |
| Load capacity | 280 kg |
| Weight | 324 g |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables

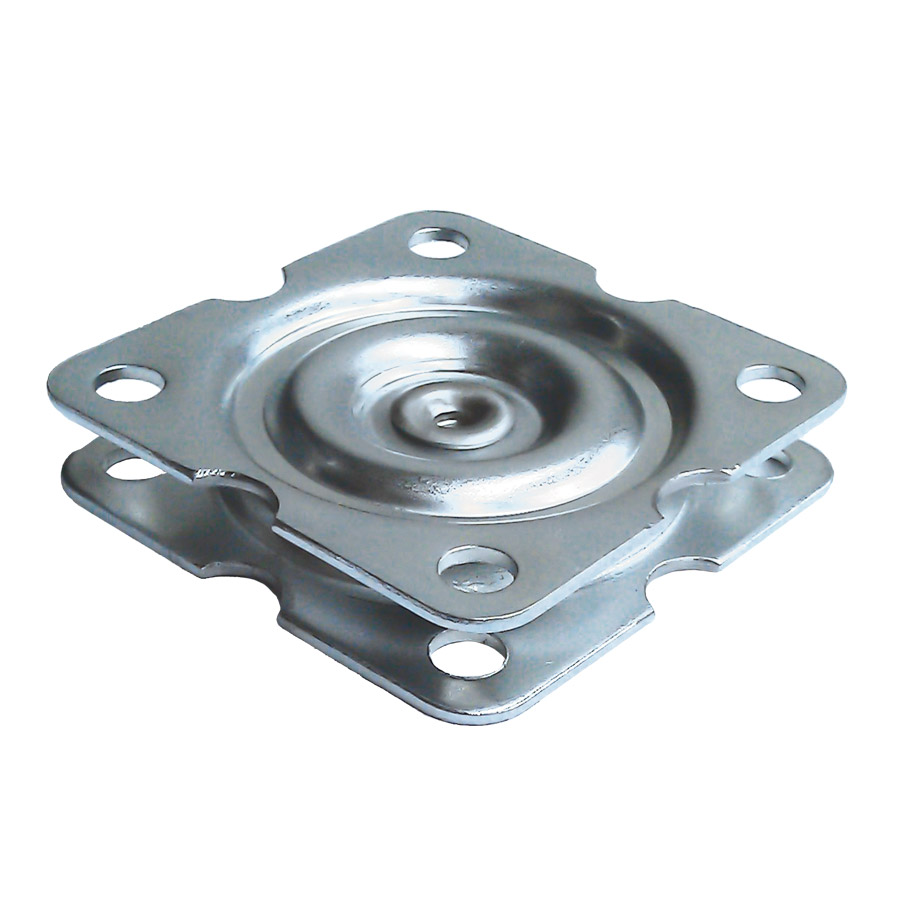

197D
On request
197D 0 mm, 50 kg
Technical data
| Height | 10,5 mm |
| Top plate dimensions | 57x57 mm |
| Top plate hole diameter | 10,5 mm |
| Dist. between holes | 43x43 mm |
| Load capacity | 50 kg |
Technical description
- double plate ball bearing
- single-row ball race
- zinc-passivated
Areas of application
- turntables
- game tables

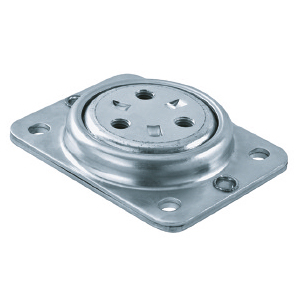

198ZPI - 115X85
198ZPI 0 mm, 250 kg - 600 kg
Technical data
| Height | 19 mm |
| Top plate dimensions | 115x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x55/60 mm |
| Load capacity | 250 kg |
| Weight | 544 g |
Technical description
- double ball race in closed special head
- zinc passivated
Areas of application
- turntables
- game tables
