DTRB 1002 5100
DTRB 1002 5100 100 mm - 125 mm, 150 kg - 200 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 50 mm |
| Height | 128 mm |
| Offset | 42.5 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 150 kg |
| Weight | 1.3 kg |
Wheel
- Glass fibre reinforced polyamide wheel with black rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel head with double ball race and sealring
- with directional lock
DTRG 1002 5100
DTRG 1002 5100 100 mm - 125 mm, 150 kg - 200 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 35 mm |
| Hub length | 50 mm |
| Height | 128 mm |
| Offset | 42.5 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 150 kg |
| Weight | 1.3 kg |
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with one deep groove ball bearing
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel head with double ball race and sealring
- with directional lock

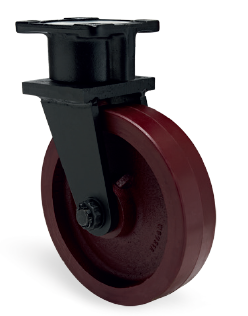

EH210SUTM
250 mm, 3000 kg
Technical data
| Diameter | 250 mm |
| Wheel width | 76 mm |
| Height | 368 mm |
| Offset | 72 mm |
| Top plate dimensions | 178x153 mm |
| Top plate hole diameter | 16 mm |
| Dist. between holes | 127x102 mm |
| Load capacity | 3000 kg |
Wheel
- Heavy duty polyurethane wheel with a cast iron centre and two taper roller bearings
Technical description
- Forged steel swivel fork with two tapered roller bearings and a grease nipple, welded steel fork legs thickness 5 mm
EXR 19-12
EXR 19-12
Technical data
| Diameter | 19 mm |
| Top plate hole diameter | 12 mm |
| Weight | 1 kg |
Technical description
- Round nylon expander for mounting on bolt
- hole swivel casters
EXV 20-12
EXV 20-12
Technical data
| Diameter | 20 mm |
| Top plate hole diameter | 12 mm |
| Weight | 1.2 kg |
Technical description
- Square nylon expander for mounting on bolt
- hole swivel casters
FCCN 0803 6102
FCCN 0803 6102 80 mm - 140 mm, 200 kg - 500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85 x 50 mm |
| Load capacity | 200 kg |
| Weight | 1.5 kg |
Wheel
- Cast iron wheel with two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCCV 0803 6101
FCCV 0803 6101 80 mm - 140 mm, 200 kg - 500 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 95 x 60 mm |
| Load capacity | 200 kg |
| Weight | 1.3 kg |
Wheel
- Cast iron wheel with bonded-on Vulkollan tyre (Shore A 92) with two ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCTB 0803 6101
FCTB 0803 6101 80 mm, 85 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 30 mm |
| Hub length | 36 mm |
| Height | 85 mm |
| Top plate dimensions | 110 x 75 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 85 x 50 mm |
| Load capacity | 85 kg |
| Weight | 1.1 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FCTB 1003 6151
FCTB 1003 6151 100 mm - 140 mm, 140 kg - 300 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 46 mm |
| Height | 105 mm |
| Top plate dimensions | 125 x 90 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 95 x 60 mm |
| Load capacity | 140 kg |
| Weight | 1.8 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
Technical description
- Rigid fork out of cast iron GG 20
FDPE 0501 1001
FDPE 0501 1001 50 mm - 125 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Wheel width | 20 mm |
| Hub length | 24 mm |
| Height | 70 mm |
| Top plate dimensions | 60 x 60 mm |
| Top plate hole diameter | 6.3 mm |
| Dist. between holes | 48/38 x 48/38 mm |
| Load capacity | 40 kg |
| Weight | 0.12 kg |
Wheel
- Polypropyleene wheel with a grey rubber tyre
- (Shore A 85) with zincplated threadguards
Technical description
- Rigid fork of zinc-coated sheet steel
